AUTOMATIC NONWOVEN FABRIC PACKING MACHINE.

Nonwoven Fabric Rolls.


Automatic Fabric Roll Packing Engineering:

Automatization is a main trend in the development of the nowadays’ word. There is a gap at home in the fabric inspecting and packing engineering. The nation is dependent on importation from abroad for the equipments needed. In response to the domestic demands our company has designed and developed this set of fully automatic fabric fabric inspecting and packing engineering which can be applied in the supporting almost of any cloth-inspecting and rolling machines of both China and foreign makes to accomplish the finishing of the fabrics and also is in position to construct the packing engineering series in different specification to customers’ adherent and different functional requirement, provide them with exquisite equipments and best services.



Main Technological Process of the Packing Engineering:

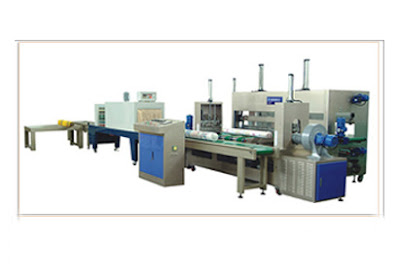

Accomplishes the rolling and inspecting procedures from the cloth-inspecting and the cloth-rolling. Accomplishes the batching and color separation from the cloth-inspecting, rolling to the cloth-storage conveyor. Finishing the cloth-storage engineering is followed by automatic entry into the cloth-belt conveyor ; The cloth-feeding belt conveyor carries the cloth into the PE film automatic packing machine for the automatic packing procedure ; At finishing the packing, the cloth is carried from the middle section belt conveyor to the end section belt conveyor ; The end belt conveyor carries the packed cloth to the thermal shrinkage machine ; The thermal shrinkage machine contracts the PE film from all sides to attain a compact and neat packing ; The cloth exit roller conveyor cools down the finished product after being shrunken and carries the cloth to the cloth storage table. The cloth storage table gives a second cooling to
the shrunken product and a short time storage on itself for the cloth rolls that are still not stacked, yet. Note :The number of both the cloth cloth feeding conveyor and the storage
conveyor is subject to the customer’s requirement.


Main Equipments the Packing Engineering:
◆ Inspecting-rolling machines: 4-8 units
1unit of fully automatic PE packing machine.
◆ Cloth-introduction belt conveyors:4-8units
Cloth-exit belt conveyor :1 unit
◆ Thermal shrinkage machine : 1 unit
90°rolling conveyance cloth overturning machine :1 unit
Cloth overturning table :1unit
For the -marked items the number of composition depends on the actual need. Each unit of the fully automatic PE packing machine performs a monthly output as much as 4 million meters .


Main Composing Equipment Specifications:
◆ Packing machine dimension :( L×H×W ) 4000mm×2200mm×2700mm
◆ Heat-Shrink machine dimension :( L×H×W ) 3500mm×1700mm×800mm
◆ Packing speed : 5-7 rolls / min max.
◆ Applicable packing range : Rolling diameter : Φ100mm~600mm
Circular roll length :900~2400mm
Sheet rolling size :Thickness lower than 300mm
◆ Power : a.3-phase 380V
b. Packing machine master unit total power : 11kw ( actual power 6 kw )
c. Thermal shrinking machine power : 26 kw ( actual power 11 kw )
d. Roller conveyor : 0.18kw
e. Belt conveyor : 0.18kw
◆ Compressed air : a. Pressure 5-7kg / cm2
b. Air amount : 0.5m3 / min ( equivalent to 5HP air-compressor )
( Power and air supply are to buyer’s preparation )
